GROCO 3" Full Flow Ball Valve [FBV-3000]

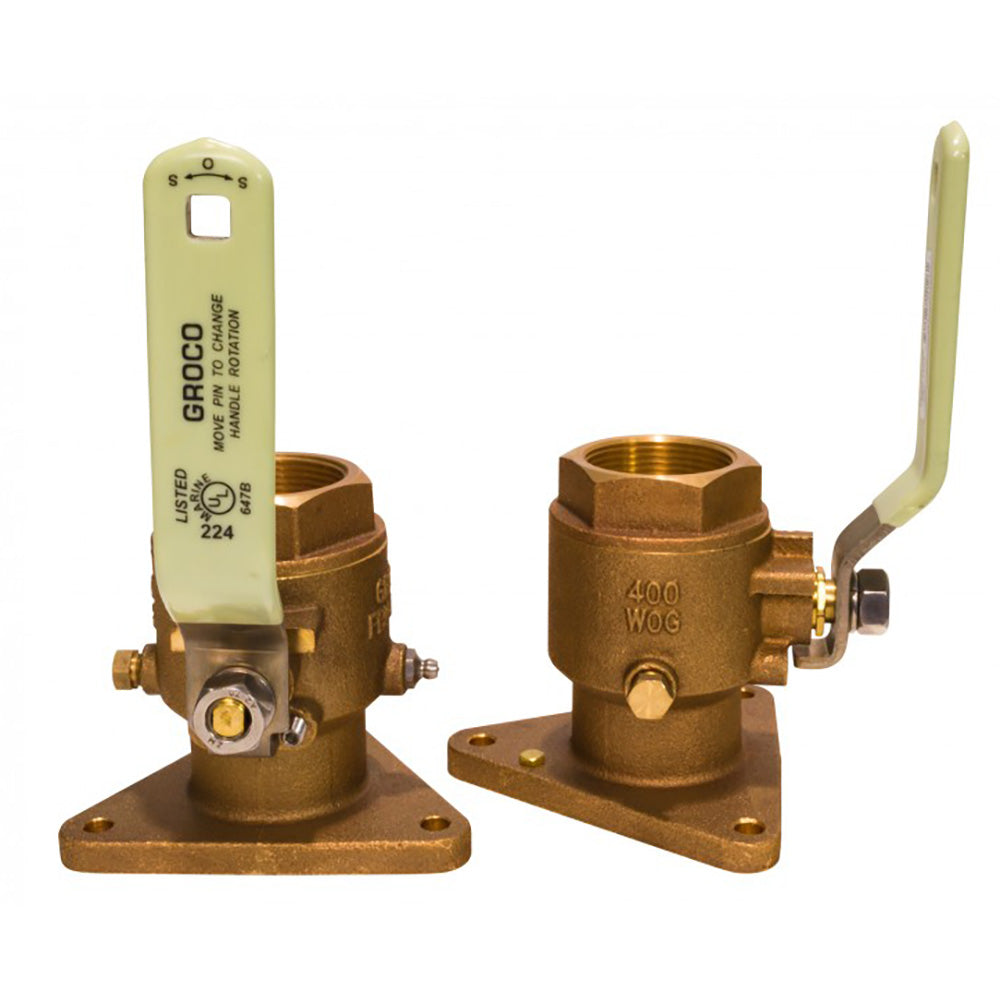

3" Full Flow Ball Valve

This GROCO flanged ball valve is designed for controlling the flow and pressure of fluids in a pipeline system.

Features:

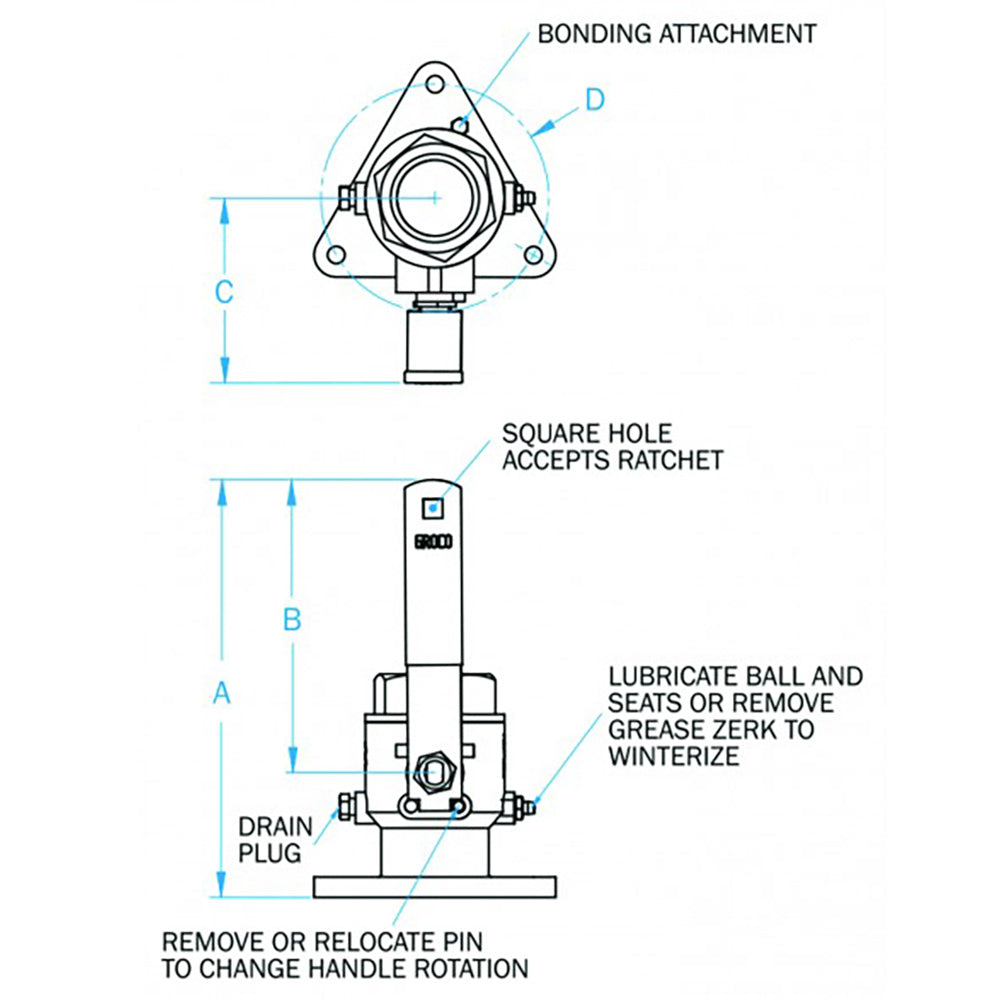

• 1-1/4" sizes and larger include one grease zerk fitting for lubrication (use only with the valve in the open position), and one drain plug. The zerk can also be used for draining.
• The patented field reversible handle allows you to select the closed position orientation (clockwise or counter-clockwise) that best suits the installation.
• The handle has a square hole to accept standard ratchet, to help reach valves in hard-to-reach locations and ease the actuation of difficult-to-operate valves.
• Full flow
• A triangular base with a bolt pattern to match most popular brands makes retrofit easy.
• C83600 bronze construction
• Stainless steel handle and hardware
• Chrome-plated solid brass ball
• PTFE seats and seals
• Bonding attachment on base

Specifications:

• Thread Bottom NPS: 3"
• Thread Top NPT: 3"

Specifications:

• Construction: Bronze
• Box Dimensions: 8"H x 9"W x 16"L WT: 19.4 lbs
• UPC: 742985144774
