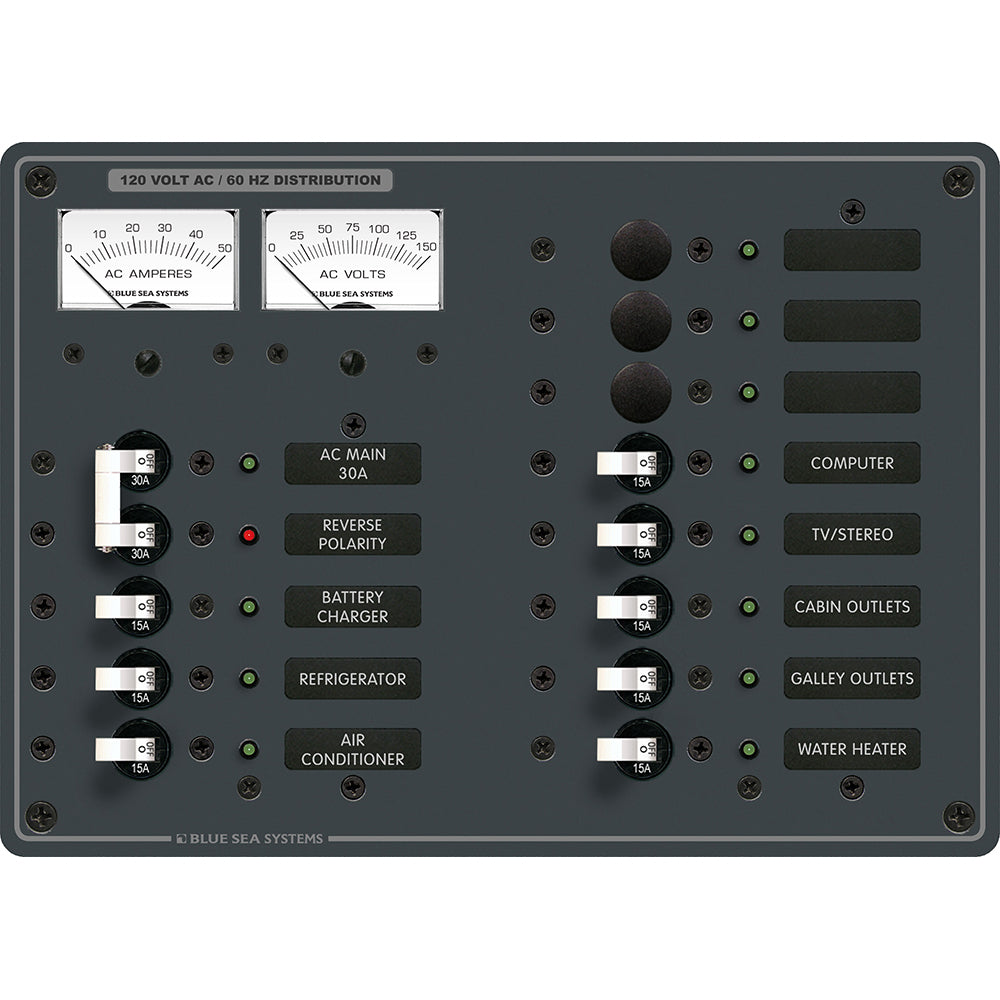

Blue Sea 8076 AC Main +11 Positions Toggle Circuit Breaker Panel - White Switches [8076]
Blue Sea 8076 AC Main +11 Positions Toggle Circuit Breaker Panel - White Switches [8076]
Regular price
$844.97 USD
Regular price
Sale price
$844.97 USD
Unit price
/
per
8076 AC Main +11 Positions Toggle Circuit Breaker Panel - White Switches
Features:
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Positions: 11
- Nominal Voltage: 120v AC
- Height: 7.5"
- Width: 10.5"
Included:
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (12) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
- (8) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
- (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
- (1) 8244 AC Micro Voltmeter - 0 to 150v AC (Meter)
- (1) 8246 AC Micro Ammeter - 0 to 50A w/ Coil (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: AC
- Max Breaker Quantity: 11
- Voltage: 120v
- Box Dimensions: 5"H x 10"W x 13"L WT: 4.1 lbs
- UPC: 632085080761
Owner's Manual (pdf)
